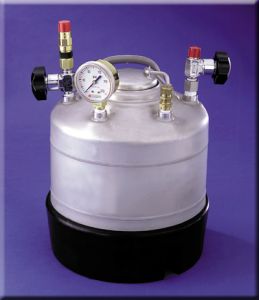

Koehler K10600 Fuel Storage Stability Vessel

Condition: New Brand new item from stock or on order from manufacturer
Stock #:
Available In Stock (request a quote)
Dimensions (approx.):
9.5" diam x 8.5"H (outside)
Product Description The Koehler K10600 Fuel Storage Stability Vessel is used for assessing potential storage stability of middle distillate fuels, including fuels with or without stabilizer additives, and freshly refined or previously stored fuels. The sample is aged in a pressurized vessel at constant temperature for 16 hours and, after cooling, the total amount of insoluble products is determined gravimetrically. This is the 4-unit price. Inquire about the 6-unit model

Features and Benefits:
- Conforms to the specification of ASTM D5304
- Four unit and six unit models

Stainless steel pressure vessels accommodate multiple sample containers for determining storage stability of fuels by the oxygen overpressure method. Vessels meet all applicable ASME and ASTM safety requirements for construction and working pressure and maximum operating temperature and are equipped with pressure safety valves factory present at 200psi (1,332kpa). Included with each model are a collapsible glassware rack that installs and removes easily for cleaning, oxygen inlet and outlet valves with quick disconnect fittings and charging hose, pressure gauge and wide-mouth closure with viton O-ring seal.

Capacity: Four or six sample containers
Construction: 316 stainless steel, in accordance with ASME specifications
Working Pressure at 90°C: Exceeds ASTM requirements
Safety Relief Valve Setting: 200psi (1,332kPa)
Pressure Gauge: 0-200psi

Included Accessories:
Glassware rack, hinged, for four or six sample containers
Charging Hole with pressure tight crimp and quick disconnect
The following link provides additional information from the instruction manual or original manufacturer's brochure. Right-click to open the PDF in a new window or download it:
