Product Description

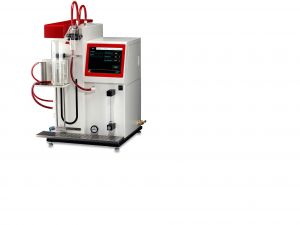

The Koehler Air Release Value Apparatus consists of a test vessel and air flow control equipment for delivering heated air at the specified flow rate to a lubricating oil sample maintained at constant
temperature. Integrated Touch Screen Control panel guides user from start to finish of test operation and provides density calculation and timing operation for measuring the air release value of the test sample. Drying oven available as additional accessory for warming test oil at temperatures of up to 100°C; Integrated circulating bath and balance, and air bath for sinker; compressed air heater overtemperature and overpressure protection circuitry. Automatically measures the time for air release.
Test method: The ability of a turbine, hydraulic, or lubricating oil to separate entrained air is a key performance characteristic in applications where agitation causes a dispersion of air bubbles in the oil. To determine air release properties, the sample is heated to a specified test temperature and blown with compressed air. After the air flow is stopped, the time required for the air entrained in the
oil to reduce in volume to 0.2% is the air bubble separation time.
Temperature Range: Ambient to 75 °C (167 °F)
~ Conforms to ASTM D3427, IP 313 and related specifications; ISO 9120; DIN 51381; NF E 48-614
~ Integrated Touch Screen Control Panel
~ Automatic lift system that moves test vessel from air source to balance sinker
~ Automatic calculation of final sample density for determination of air release value
~ Integrated Circulation bath with Water Level Indicator
~ Integrated Balance
~ Secure Clamp Mechanism of the Air Tube
~ Automatic Jacketed Test Vessel Draining
Included Accessories:
Sinkers, 5mL and 10 mL
Integrated Balance
Integrated Circulator
Tubing and Fittings
Platinum Wire
Jacketed Test Vessel
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K88530 / K88539 Air Release Value Apparatus or copy the following into your browser address window: labequip.ca/stock/pictures/n1808.pdf
Made in USA.
This item ships from Bohemia, NY.
