Eberbach E3300 single speed Grinding Mill

Condition: New Brand new item from stock or on order from manufacturer
2 YEAR MANUFACTURER'S WARRANTY
Stock #:
N1875
Dimensions (approx.):
22 x 15 x 13"H (outside)
Electrical:
Specify 115 or 230 Volts, 50/60 Hz,
Product Description

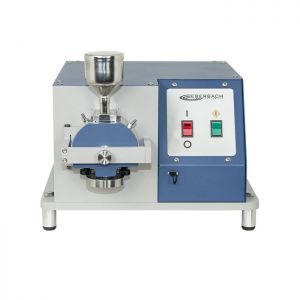

The E3300 Mini mill is an all steel Benchtop Cutting Mill featuring a 1.575" diameter sealed cutting chamber with two adjustable stationary blades and a rotating cutting head with four cutting edges that revolve at high speed to produce a shearing action which minimizes heat build-up (optional cutting chamber temp sensor is available). Samples introduced through the hopper are swept around by the rotor until they are cut to sufficient fineness to pass through sieve.

The hard, steel cutting edges on the knives allow milling of a wider range of materials, including plastics, animal feed, bones, cables, cardboard, electronic scrap, feed pellets, foils, food, leather, material mixtures, non-ferrous metals, paper, pharmaceutical products, refuse derived fuels, rubber, waste, wood and so much more. The E3300 is designed with a machine tool type of cartridge spindle, small powerful motor with a operational speed of 1,200 rpms with high torque. The chamber door comes standard with a door safety switch and the machine has legs to set on top of a benchtop or the legs can be removed and the machine can be bolted directly to a benchtop.

The E3300 is supplied with stainless steel hopper including cover, wooden plunger, one rotating cutting head, one set of stationary blades, three (3) stainless steel sieves (20, 40 & 60 mesh), one jar adapter, one 4oz collection jar, and cleaning brush. Mini Cutting Mill with Powder Coated Housing and Tool Steel Cutting Chamber and Blades.

Specifications:
Cutting Speed: 1200 rpm
Chamber Size: 1.575" Diameter
Sample Input Size: 0.6" Diameter
Sample Volume: Volume Dependent on Sample - Contact us for details
Torque: 1.4 Nm
Housing Material: Powder Coated Steel (also available as Stainless Steel - request quote)
Sieve Material: 316 Stainless Steel

Other Available Models:
E3300.SS: Mini Cutting Mill with 316 Stainless Steel Housing, Cutting Chamber and Blades.
Made in USA.
This item ships from Van Buren Township., MI.
