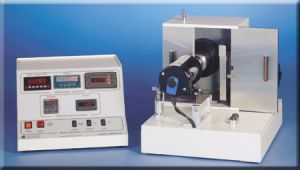

Koehler Instrument K18500 / K18595 High Temperature Wheel Bearing Grease Tester

Condition: New Brand new item from stock or on order from manufacturer
1 YEAR MANUFACTURER'S WARRANTY
Stock #:
N1228
Dimensions (approx.):
Control Unit: 16"W x 14 x 16"H (inside)
Test Unit: 16"W x 20 x 15.75"H (outside)
Electrical:
Specify 115 or 230 Volts, 50/60 Hz Hz,
Product Description
The Koehler K18500 High Temperature Wheel Bearing Grease Tester evaluates the high temperature stability of automotive wheel bearing greases in a modified automotive front wheel hub-spindle-bearings assembly. The ASTM D3527 Life Performance test employs severe conditions (25 lbf (111N) thrust load, 1000rpm, 160°C spindle temperature) to induce grease deterioration and failure. The test continues in a 20/4 hour on/off cycle until grease breakdown causes measured drive motor torque to increase past an established end point. The number of hours to failure is the test result. The ASTM D4290 Accelerated Leakage Tendencies procedure employs similar test conditions for a 20 hour period, after which leakage of grease and oil is measured and the bearings are washed and examined for deposits of gum and varnish.

Features and Benefits:
~ Fully automatic operation
~ Digital monitoring of all test functions

Performs life performance and accelerated leakage tendencies tests on lubricating greases in accordance with ASTM test specifications. Consists of a modified front wheel hub-spindle-bearings assembly housed in a constant temperature oven and coupled to a 1/4hp variable-speed drive motor. Controls test functions automatically and provides continuous digital display of motor torque, rpm, chamber temperature, spindle temperature, time cycle and elapsed time. Test parameters outside of ASTM specifications can be selected by the operator for in-house testing. Automatically terminates test and displays elapsed on-cycle hours when grease deterioration causes drive motor torque to increase to the calibrated end point. A built-in thirty second time delay circuit prevents erroneous test terminations due to momentary surges in motor torque at the beginning of the on-cycle. Insulated constant temperature oven is equipped with a 1200W heater and balanced 1/20 hp circulation fan for efficient heat distribution. Sliding access doors and a movable platform that swings the drive motor out of the way provide easy access to the spindle assembly. Modified steel spindle and hub assembly conforms to all critical 1971 Chevy II dimensions and is fitted with thermocouple, bearing thrust loading device and anodized aluminum grease collector. All controls and monitors are housed in a separate cabinet.

Specifications:
Digital controls and displays:
Timer: on/off cycle and real time
Chamber Temperature: °C
Spindle Temperature: °C
Motor rpm: 0-1725rpm
Motor Torque: current draw
Elapsed Time: 9999.9 hr.
Maximum Temperature: 177°C (350°F)
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K18500 / K18595 High Temperature Grease Tester or copy the following into your browser address window: labequip.ca/stock/pictures/n1228.pdf
Made in USA.

ACCESSORIES:

COMES COMPLETE WITH:
Thermocouples (2)
Thermometer holder
Bearings (1 set)
Grease Packer Assembly
Bearing Installation/Removal Tools:
bearing installer, small and large
bearing cup removers, bearing cup installer,
bearing puller and spindle wrenches (pins)

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
250-000-42C ASTM 42C Thermometer Range: 95 to 255°C
289-004-001 Inboard Bearing Set - Includes LM67048 Cone and LM67010 Cup
289-004-002 Outboard Bearing Set - Includes LM11949 Cone and LM11910 Cup
