Product Description

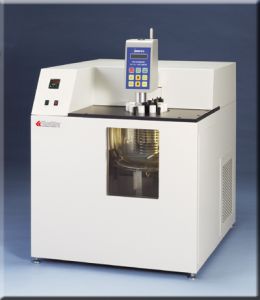

This BV3000 Brookfield Viscosity Liquid Bath System determines the low temperature, low shear rate viscosities of gear oils, automatic transmission fluids, hydraulic oils and other fluid lubricants by use of the Brookfield viscometer.
*** Request separate quotes on viscometers to use with this bath. ***
Features and Benefits:
~ Sample soaking and testing in a single bath, eliminating the need for an air bath and the risk of sample temperature rise during transfer
~ Redesigned for improved control of sample movement and handling during testing
~ Microprocessor PID temperature control duplicates the sample cooling rates in ASTM D2983
~ Up to 40 cooling/testing temperature profiles can be stored in memory
~ Redesigned turntable mechanism seals out moisture to minimize ice formation
Constant temperature liquid bath permits testing of samples without the risk of sample temperature rise. After cooling in the air bath, the sample must be transferred to the balsa cell carrier for testing with the Brookfield viscometer. If the sample is not tested quickly, there is the risk of sample temperature rise. The Brookfield Viscosity Liquid Bath eliminates this risk by permitting the sample to be tested in a constant temperature environment. The Brookfield viscometer mounts directly on the bath and the samples are rotated into position under the spindle by means of a built-in turntable. Cooling system maintains temperature with ±0.05°C stability in the range of +10°C to -55°C. Bath temperature is displayed in digital format.
Specifications
Conforms to the specifications of: Note 7 of ASTM D2983
Sample Capacity: 10 samples
Temperature Range: +10°C to -55°C
Temperature Control Stability: ±0.05°C
REQUIRED: Rotational Viscometer
Optional Accessories:
1 K34700-SFW-A Viscosity Software Viscosity Software
12 K34706 Insulated Spindle No.4B2 (Requires K2983-2)
Recommended for Liquid Bath Application
12 K2983-2 Cell Stopper (For K34706)
1 K34770 Flat Test Cell (pack of 12)
1 K34779 Spindle Support Clips (pack of 12)
12 K34705 test Cell Cover
Thermometers
1 250-000-123C ASTM 123C Thermometer (IP 95C)
1 250-000-124C ASTM 124C Thermometer (IP 96C)
1 250-000-125C ASTM 125C Thermometer (IP 97C)
Viscosity Standards
1 355-005-027 Viscosity Standard N27B
1 355-005-115 Viscosity Standard N115B
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K34710 / K34711 (BV3000) Viscosity Bath or copy the following into your browser address window: labequip.com/stock/pictures/n1223.pdf
Made in USA.
This item ships from Bohemia, NY.
