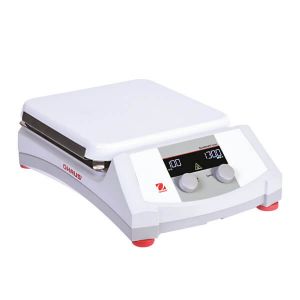

OHAUS e-G51HS10C (10 x 10 in.) Digital Stirring Hot Plate

Condition: New Brand new item from stock or on order from manufacturer
Stock #:
Dimensions (approx.):
Plate Size   10 x 10 in. (inside)
16 x 11.25 x 5 in.H (outside)
Specify 115 or 230 Volts, 50/60 Hz, 11.2A
Product Description
OHAUS Guardian 5000 Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints.

~ Applications: Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
~ Display: Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon
~ Operation: Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5 in. (3.8 cm) PTFE coated stir bar
~ Communication: N/A
~ Construction: Probe connection, SmartHousingÖ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops
~ Design Features: Hot top indicator light, audible alarm, SafetyHeatÖ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

Capacity: 18 L
Plate Construction: Ceramic
Temperature Range: Ambient + 5°C - 500°C
Speed Range: 60 rpm - 1,600 rpm
Calibration: Temperature calibration
Control: Digital
Display: Custom Backlit LCD
In-use cover: Available as an Accessory
Power Consumption: 1,080 W
Temperature probe: Available as an Accessory
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
OHAUS e-G51HS10C Digital Stirring Hot Plate or copy the following into your browser address window: labequip.ca/stock/pictures/n1840.pdf
Made in USA.


Built-in support rod holder
1.5" (3.8 cm) PTFE coated stir bar

In Use Cover Guardian 7x7
Clamp, Specialty, Column, CLS-COLMNSL
Probe PT1000(A) -40~200C 20cm PTFE
Clamp, Specialty, Column, CLS-COLMNSM
Probe PT1000(A) -40~200C 25cm PTFE
Clamp, Specialty, Column, CLS-COLMNSS
robe PT1000(A) -40~400C 20cm SS316/304
Clamp, Specialty, Column, CLS-COLMNSX
Probe PT1000(A) -40~400C 25cm SS316/304
Clamp, Specialty, Nester, CLS-NESTXS
Spinbar 10 cm with Pivot Ring PTFE
Spinbar 2.5 cm PTFE
Spinbar 3.8 cm PTFE
Spinbar 7 cm PTFE
Stir Bar Retriever
Support Rod And Clamp Kit
Ultra Flex Support Kit
Vessel Clamp
