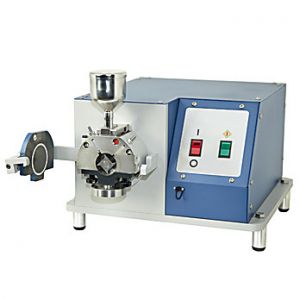

Thomas Scientific Wiley Mini-Mill Grinding Mill

Condition: New Brand new item from stock or on order from manufacturer
1 YEAR MANUFACTURER'S WARRANTY
Stock #:
N2133
Dimensions (approx.):
17" x 12" x 12"H (W/out stand) (outside)
Electrical:
115V Volts, 50/60 Hz,
Product Description
The Wiley Mini Mill is an all steel Benchtop Cutting Mill featuring a 1.575" diameter sealed cutting chamber with two adjustable stationary blades and a rotating cutting head with four cutting edges that revolve at high speed to produce a shearing action which minimizes heat build-up. Samples introduced through the hopper are swept around by the rotor until they are cut to sufficient fineness to pass through sieve.

The hard, steel cutting edges on the knives allow milling of a wider range of materials, including plastics, animal feed, bones, cables, cardboard, electronic scrap, feed pellets, foils, food, leather, material mixtures, non-ferrous metals, paper, pharmaceutical products, refuse derived fuels, rubber, waste, wood and so much more.

The Wiley Mini Mill is designed with a machine tool type of cartridge spindle, small powerful motor with a operational speed of 1,750 rpms with high torque. The chamber door comes standard with a door safety switch and the machine has legs to set on top of a benchtop or the legs can be removed and the machine can be bolted directly to a benchtop.

*** A variable Speed Mini Cutting Mill is avaialble - inquire on pricing. It is designed with a machine tool type of cartridge spindle, small powerful servo motor which allows for variable speed operation of 0 - 2,400 rpms with high torque. The chamber door comes standard with a door safety switch and the machine has legs to set on top of a benchtop or the legs can be removed and the machine can be bolted directly to a benchtop. ***

Units are supplied with stainless steel hopper including cover, wooden plunger, one rotating cutting head, one set of stationary blades, three (3) stainless steel sieves (20, 40 & 60 mesh), one jar adapter, one 4oz collection jar, and cleaning brush.

SPECIFICATIONS:
Cutting Speed: 1750 rpm
Chamber Size 1.575" Diameter
Sample Input Size 0.6" Diameter
Sample Volume Volume Dependent on Sample
Torque 1.03 Nm
Housing Material Powder Coated Steel
Sieve Material 316 Stainless Steel
Made in USA.
This item ships from Swedesboro, NJ.
