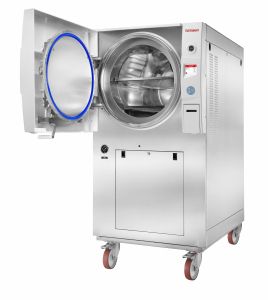

The 5075HSG is a fully featured 160 liter stand-alone pre & post vacuum autoclave. Many years of expertise with industrial sterilization technology have been packaged into the 5075 autoclave models to make them ideal Class B healthcare autoclaves.
The 5075HSG is equipped with the BacSoft control system utilizing a multicolor screen and touch pad.The sterilizer is provided with a total of 9 programs, including two test cycles, with a full temperature range. A built in printer is also included, providing real-time cycle data including the pressure, temperature, change of phase, alarms and a summary at the end of the cycle.
The 5075HSG is a free-standing, cabinet enclosed unit with a wheel mounted design to facilitate installation. They are as simple and easy to use as any Tuttnauer tabletop autoclave.
The 5075HSG comes with a built-in 20kW carbon steel electric steam generator for fast sterilization cycles. The generator also comes standard with an automatic blow down feature.
The 5075HSG autoclave chamber is surrounded by a coiled jacket that increases overall cycle speed and performance by maintaining chamber warmth when in stand-by mode. The coiled jacket also ensures uniform heat distribution throughout the chamber. The system provides a deep and powerful vacuum due to a high volume water-ring vacuum pump for reliable and complete air removal. The 5075HSG offers all the features and reliability of a large capacity autoclave at a fraction of the size and cost.
¦ High volume water-ring vacuum pump for fast and efficient air removal
¦ Stand-by heating mode keeps the autoclave warm and ready for use
¦ 316L grade stainless steel chamber and door with electro-polish finish
¦ Double locking safety device prevents door from opening at high pressure and high temperature
¦ Control lock-out switch prevents starting a cycle if door is not properly locked
¦ Built-in alpha-numeric printer
¦ Mounted on wheels for ease of installation
¦ These high quality healthcare autoclaves comply with the strictest international directives and standards, including UL, ETL, FDA, CE, ASME.
*** Descal-A-Matic is required for water treatment to take the hardness out of the water ***
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it: Tuttnauer 5075HSG Floor-model Autoclave Sterilizer
or copy the following into your browser address window: labequip.com/stock/pictures/n1975.pdf
Made in Israel.
This item ships from Hauppauge, NY.
