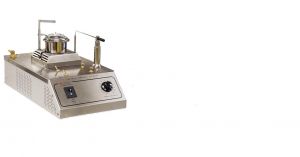

Koehler K15601 / K15671 Tag Open-Cup Flash Point Tester

Condition: New Brand new item from stock or on order from manufacturer
Stock #:
Available In Stock (request a quote)
Dimensions (approx.):
10"W x 17.5"D x 11.5"H (outside)
110-230 Volts, 50/60 Hz,
Product Description For determination of flash and fire points of liquids at temperatures of up to 325°F (163°C) and flash points of cutback asphalts at temperatures of less than 200°F (93°C).

Tag Open-Cup Flash Tester
- Conforms to ASTM D1310, D3143 specifications
- Choice of gas or electrically heated
Determines Tag Open-Cup flash point of liquid products and cutback asphalts. Includes sample test cup, plated brass liquid bath with constant level overflow, pivoting ignition taper with pilot light and reference bead, pivoting thermometer holder, heater and base.
Electrically heated model is equipped with stepless variable heat control for accurate control of temperature rate of rise per specification. Gas heated model also available.

Conforms to the specifications of: ASTM D1310, D3143
Included Accessories: Borosilicate Glass Sample Cup

250-000-33F ASTM 33F Thermometer Range: -36.5 to +107.5 °F
250-000-33C ASTM 33C Thermometer Range: -38 to +42 °C
250-000-09F ASTM 9F Thermometer Range: 20 to 230 °F
250-000-09C ASTM 9C Thermometer Range: -5 to 110 °C
250-000-35F ASTM 35F Thermometer Range: 194 to 338 °F
250-000-35C ASTM 35C Thermometer Range: 90 to 170 °C
K15610 Leveling Device For proper adjustment of sample level in test cup. Meets ASTM specifications. Polished aluminum
The following link provides additional information from the instruction manual or original manufacturer's brochure. Right-click to open the PDF in a new window or download it:
