Product Description

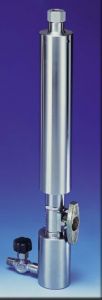

The K11201 Reid Vapor Pressure Cylinders are polished stainless steel test cylinders for vapor pressure tests of liquid petroleum products, volatile crude oil and liquefied petroleum gas (LPG). Consists of upper chamber and lower chamber in required 4:1 volume ratio. O-ring gaskets provide tight seal between chambers and at gauge coupling. Two-opening type is for liquid products having a Reid Vapor Pressure above 26psi (ASTM D323) and for LPG (ASTM D1267). Lower chamber of two-opening apparatus includes straight-through ball valve and 1/4 in. needle valve. Lower chamber of two-opening apparatus includes straight-through ball valve and 1/4 in. needle valve.
Hydrostatic Test (two-opening type): Withstands 1000psi (6894kPa) gauge hydrostatic pressure per ASTM D1267 specifications
*** For LPG testing, order two-opening type apparatus and accessory bleeder valve assembly ***
Request prices on the required pressure gauges, thermometer, etc.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K11201 (2-opening) Reid Vapor Pressure Cylinder or copy the following into your browser address window: labequip.com/stock/pictures/n675.pdf
MANUFACTURED IN USA.This item ships from United States.
ACCESSORIES:
OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST:
K11202 Bleeder Valve Assembly for LPG tests
SOLD!
This specific item has been sold, but we often have a similar or equivalent item in stock. Please inquire by phone, email, or by filling out the form on this page.
PROUDLY CANADIAN - We Ship Worldwide
