For flash point determinations of liquids with a viscosity of below 5.5 centistokes (cSt) at 104°F (40°C) or below 9.5cSt at 77°F (25°C), and a flash point below 200°F (93°C) except cut-back asphalts, those liquids which tend to form a surface film under test conditions and materials which contain suspended solids.

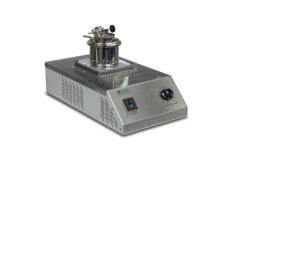

Determines flash points of liquid products by the Tag Closed Cup method. Features stepless variable heat control with reference dial for accurate repeat setting of temperature rate of rise per specifications. Also available with gas burner instead of electric heater. Precision machined cover mechanism simultaneously opens slide shutter and applies test flame to sample at the turn of a knob. Includes liquid bath with constant level overflow, brass test cup, plated brass thermometer ferrules and test flame reference bead. Bath and cover mechanism are constructed of plated brass. Heater is enclosed in a cast aluminum base assembly. Gas or Electric Heating
Conforms to the Specifications of: ASTM D56; IP 304; FTM 791-1101
~ Brass Test Cup
~ Cover Assembly
~ 250-000-09F ASTM 9F Thermometer Range: 20 to 230°F
~ 250-000-09C ASTM 9C Thermometer Range: -5 to +110°C
~ 250-000-57F ASTM 57F Thermometer Range: -4 to 122°F
~ 250-000-57C ASTM 57C Thermometer Range: -20 to +50°C
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it: Koehler Instrument K14601 / K14671 Tag Closed-Cup Flash Pt
or copy the following into your browser address window: labequip.com/stock/pictures/n1368.pdf
Made in USA.
This item ships from Bohemia, NY.
