For the determination of the closed cup flash point of petroleum products and other liquids having flash points below -30°C and 70°C inclusive.
~ Conforms to IP 170 and related specifications
~ For flash points between -30°C and 70°C

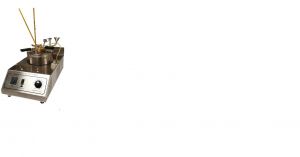

The Abel Closed cup flash point tester is used primarily to test flammable and combustible materials for shipping and safety regulations. Consists of test flame applicator, brass test cup, thermometer support, heating plate and electric heater. Applicator is precisely aligned per specifications and pivots for test flame application at specified temperature intervals. Hinged thermometer support raises to facilitate placement and removal of test cup. Adjust flame size using built-in needle valve and comparison bead.
Equipped with a 400W nickel-chromium heater with stepless variable heat control for accurate repeat setting of temperature rate of rise per specifications.
Brass Test Cup with Handle
Integrated Stirrer Motor
Thermometer Holder (2)
250-001-74C IP 74C Thermometer
250-001-75C IP 75C Thermometer
250-001-02C IP 2C Thermometer
The unit provides a test range to 110°C and can be extended to -30°C by any appropriate external chiller (please request pricing if required).
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it: Koehler K17400 / K17490 Abel Closed-Cup Flash Point Tester
or copy the following into your browser address window: labequip.ca/stock/pictures/n1387.pdf
Made in USA.
This item ships from Bohemia, NY.
