Determines the corrosion preventive properties of greases when distributed in a tapered roller bearing stored under wet conditions.
Conforms to ASTM D1743, D4950 and D5969 specifications

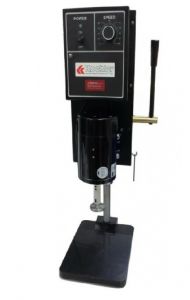

Distributes a lubricating grease sample in a roller bearing by running the bearing under light thrust load. Corrosion preventive capability is determined on a pass/fail basis by the presence of rust spots (1mm or larger) on the bearing race after a 60 second run-in period followed by prolonged exposure to water at constant temperature. Consists of variable speed motor, 1750rpm run-in stand, bearing holder assemblies, spindle/thrust loading device, mechanical grease packer pliers and test bearings.
Conforms to the specifications of: ASTM D1743, D4950, D5969 Draft Method
Drive Motor: 1750rpm
Spindle/Thrust Loading Device
Mechanical Grease Packer
Test Bearings (3) (cone and roller assemblies)
Bearing Holder Assemblies (3), consisting of:
upper and lower plastic collars for cone
plastic collar for cup
plastic jar with screw cap
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it: Koehler K17980 / K17989 Corrosion Preventive Properties
or copy the following into your browser address window: labequip.ca/stock/pictures/n1195.pdf
Made in USA.
This item ships from Bohemia, NY.
