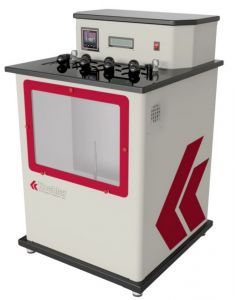

Koehler Instrument K23900 Viscosity Bath

Product Description
This Koehler K23900 kinematic viscosity bath
~ Conforms to ASTM D445 and related specifications
~ Accommodates 7 capillary viscometers
~ Microprocessor temperature control between 20°C and 100°C (212°F)
~ Stainless Steel Bath Construction
~ Dual digital displays show setpoint and actual bath temperature
~ Selectable temperature scale - Fahrenheit or Celsius
~ Integrated redundant overtemperature and low liquid level cut-off circuitry

Constant temperature bath with advanced temperature control circuitry for convenient, accurate glass capillary viscometry determinations. Microprocessor PIO circuitry assures precise, reliable temperature control within ASTM specified stability and uniformity throughout the operating range of the bath. Simple push-button controls and dual digital displays permit easy setting and monitoring of bath temperature. Baths accommodate seven glass capillary viscometers of various types.
Viewing the viscometers is made easy by LED illumination inside the bath and a baffle that provides a background for easy viewing. Temperature control uniformity is assured by means of an integrated stirrer
and baffling system for uniform bath temperature distribution. Connection of the built-in cooling coil to tap water or a recirculating water chiller facilitates temperature control at ambient or below ambient temperatures.

For the determination of the kinematic viscosity, v, of liquid petroleum products, both transparent and opaque, by measuring the time for a volume of liquid to flow under gravity through a calibrated glass
capillary viscometer. The dynamic viscosity, '1, can be obtained by multiplying the kinematic viscosity, v, by the density, p, of the liquid.
Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Many petroleum products, and some nonpetroleum materials, are used as lubricants, and the correct operation of the equipment depends upon
the appropriate viscosity of the liquid being used. In addition, the viscosity of many petroleum fuels is important for the estimation of optimum storage, handling, and operational conditions. Thus, the
accurate determination of viscosity is essential to many product specifications.

SPECIFICATIONS:
Temperature Range: 20 to 100°C (below ambient requires an external chiller)
Temperature Display Resolution: ± 0.01°C
Temperature Display Accuracy: ± 0.01°C
Bath Temperature Stability: ± 0.02°C
Bath Temperature Uniformity: ± 0.02°C
Thermometer Ports: 2
Connectivity: USB - 1
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K23900 Viscosity Bath or copy the following into your browser address window: labequip.ca/stock/pictures/n2060.pdf
Made in USA.

ACCESSORIES:

COMES COMPLETE WITH:
Test Port covers (7)

OPTIONAL ACCESSORIES AT ADDITIONAL COST:
378-025-C01 thru 378-700-C01 Cannon-Fenske Viscometer Tubes, Size 25 thru 700
378-025-C02 thru 378-700-C02 Cannon-Fenske Opaque Reverse Flow Viscometer Tubes, Size 25 thru 700
378-000-C03 thru 378-005-C03 Ubbelohde Viscometer Tubes, Size 0 thru 5
K23377-01000 Cooling Coil Assembly
K22090 Withdrawal Bulb
K23311 Rubber Stopper for Viscometer Tube, pk/12
K23350 Universal Viscometer Holder, Rectangle
K23351 Universal Viscometer Holder, Round
K23363 Modified Koppers Viscometer Holder, Round
K23381 Cannon-Fenske Routine Viscometer Holder, Round
K23382 Ubbelohde Viscometer Holder, Round
K23383 Cross-Arm Viscometer Holder, Round
K23384 Cannon-Ubbelohde Semi-Micro Viscometer Holder, Round
K23387 BS/IP/RF U-Tube Viscometer Holder, Round
K23462 Digital Stopwatch
355-001-001 White Mineral Oil, 1 Gallon
355-001-003 White Mineral Oil, 5 Gallon
250-000-120C ASTM 120C Thermometer, 40 °C Test Temperature
250-000-121C ASTM 121C Thermometer, 100 °C Test Temperature

---
