Product Description
For density, relative density (specific gravity) or API gravity determination of crude petroleum, liquid petroleum products and mixtures of petroleum and non-petroleum products.

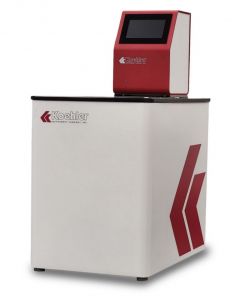

A versatile constant temperature bath designed for density/gravity determinations of petroleum products at temperatures of up to 195°F (90°C), and also for Reid Vapor Pressure determinations using immersion bombs. Digital temperature control provides quick temperature stabilization without overshoot and the unit is protected by an overtemperature control circuit that interrupts power should bath temperature exceed a programmed cut-off point.
SPECIFICATIONS:
Conforms to the Specifications of: ASTM D1298, D6074, D6158; ISO 3675
Capacity:K64600/K64690: 12 Hydrometers
-------- K64610/K64619: 6 Hydrometers
Temperature: Range: Ambient to 221°F (105°C)
------------ Control Stability: ±0.09°F (±0.05°C)
Bath Medium: K64600/K64690: 16.1 gal (60.9 L) white technical oil
------------ K64610/K64619: 9.9 gal (37.5 L) white technical oil
ADDITIONAL ACCESSORIES:
K26410 Hydrometer Cylinder - Borosilicate glass, 15 ½" l x 2" dia. with 2 ½" lip
250-000-61F ASTM 61F Thermometer - Range: 90 to 260°F
250-000-61C ASTM 61C Thermometer - Range: 32 to 127°C
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K64610 / K64690 Hydrometer Bath or copy the following into your browser address window: labequip.ca/stock/pictures/n2286.pdf
Made in USA.
This item ships from Bohemia, NY.
