Product Description

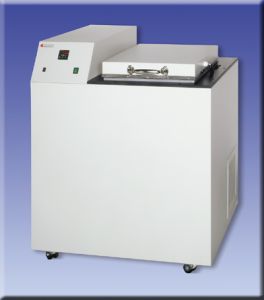

This BV4000 Brookfield Viscosity Air Bath System determines the low temperature, low shear rate viscosities of gear oils, automatic transmission fluids, hydraulic oils and other fluid lubricants by use of the Brookfield viscometer.
*** Request separate quotes on viscometers to use with this bath. ***
Features and Benefits:
~ Conforms to ASTM D2983 and related specifications
~ Mechanically refrigerated with digital temperature control
~ Operating range to -50°C
~ Sixteen sample capacity
Mechanically refrigerated cold cabinet prepares samples for Brookfield viscosity determinations on petroleum lubricants. A built-in turntable rotates the samples at 4 RPM per specifications. Cooling system maintains cabinet temperature within ±0.1°C at temperatures as low as -50°C. Cabinet temperature is displayed in digital format on the front panel. Cabinet accommodates sixteen (16) sample cells with cell carriers. Includes insulated cover.
Conforms to: ASTM D2983; IP 267 Method A; ISO 9262; CEC-L-18A
Capacity: Sixteen (16) sample cells with cell carriers
Temperature Range: -10°C to -50°C
Temperature Control Accuracy: ±0.1°C
Sample Rotation: 4 RPM
REQUIRED: Rotational Viscometer
Optional Accessories:
1 K34700-SFW-A Viscosity Software
Recommended for Air Bath Application
12 K34707 Cell Stopper (For K347-SP-L4)
1 K34770 Test Cell - Flat Bottom (pack of 12)
1 K34779 Spindle Support Clips (pack of 12)
12 K34705 Test Cell Cover
1 K34708 Insulated Cell Carrier (K34700 Air Bath Only)
Thermometers
1 250-000-123C ASTM 123C Thermometer (IP 95C)
1 250-000-124C ASTM 124C Thermometer (IP 96C)
1 250-000-125C ASTM 125C Thermometer (IP 97C)
Viscosity Standards
1 355-005-027 Viscosity Standard N27B
1 355-005-115 Viscosity Standard N115B
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K34700 / K34701 (BV4000) Viscosity Bath or copy the following into your browser address window: labequip.com/stock/pictures/n1224.pdf
Made in USA.
This item ships from Bohemia, NY.
